Highlights coreFLANGE
- Rotating torque sensor with integrated speed measurement
- Wireless. Contactless. Bearingless.
- Visualization, logging, and filtering via the free coreVIEWER app
- Versatile interfaces via coreGATE gateway (0…10V, USB, CAN, TCP/IP, MQTT, etc.)
- Open BLE interface, documentation available upon request
Customization options

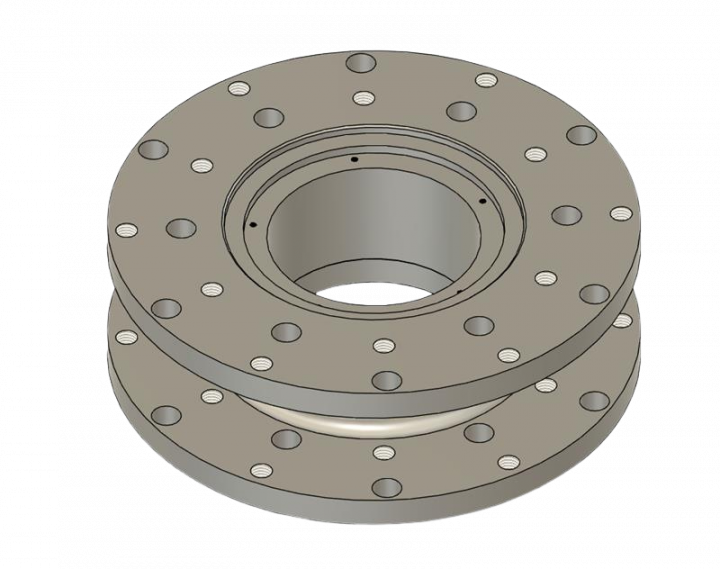

Customized geometries can be produced even for quantities as small as one. However, adapter discs are often a practical solution.
An extension to include a second or even third channel based on strain gauges is possible. Common applications are axial force or bending moment.

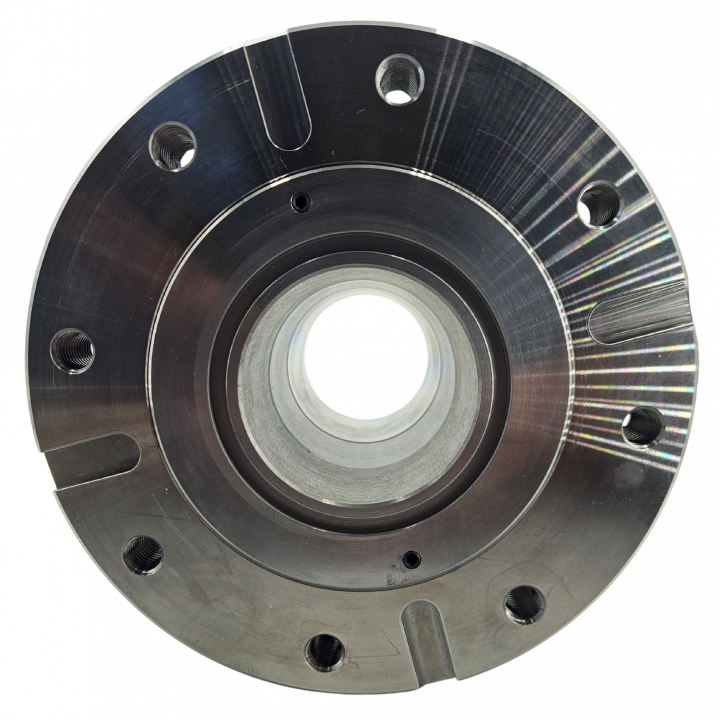

It is generally possible to incorporate a fluid feed-through, but this must be checked on a case-by-case basis. The larger the design of the sensor, the easier it is to implement a feed-through.
The typical latency of the BLE measurement system is up to 100 ms. This can be reduced to a maximum of 1 ms through specific software adjustments. Details should be discussed during a meeting.
Adapters can be designed and supplied in a wide variety of versions to suit your requirements.
Upon request, the torque sensors can be delivered with DAkks calibration performed by a certified calibration laboratory.
A brief portrait of the wireless torque sensor coreFLANGE
- Flexible measuring ranges: Choose from a wide range of nominal torques from 400 Nm to 10 kNm to meet your specific requirements.
- Comprehensive sensor fusion: Integrated measurements of bending moment, speed, acceleration and temperature provide you with a complete picture of the torque conditions.
- Load cycle monitoring: Track load cycles and detect potential problems early to avoid downtime.
- Industry standard flange mounting: coreFLANGE can be easily integrated into existing systems and can be adapted to your specific requirements.
Overview of coreFLANGE interfaces

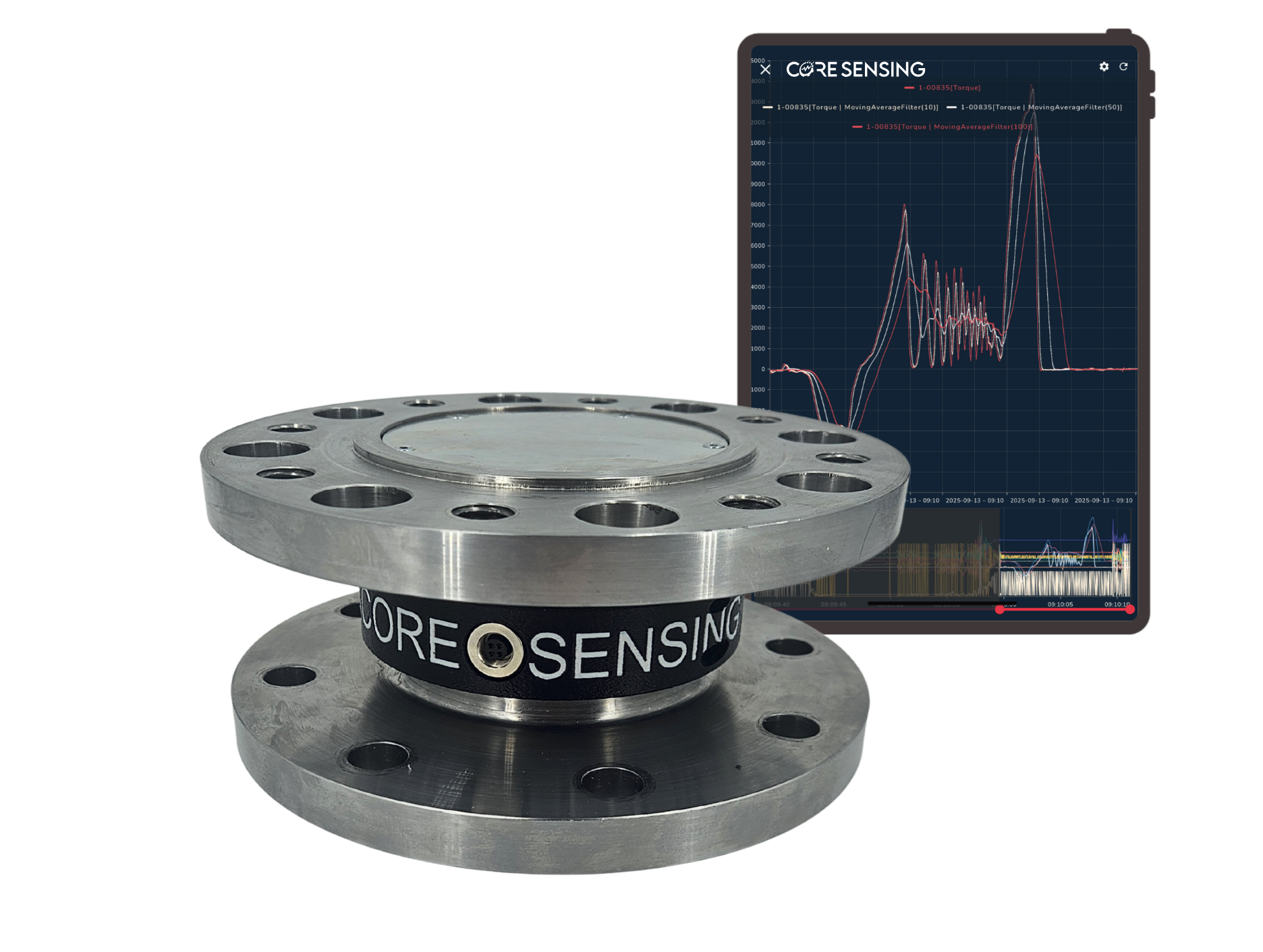

coreVIEWER: Simple recording and data visualization
The coreFLANGE is not only characterized by its precise measurements, but also offers an intuitive and user-friendly solution for recording and visualizing your measurement data. With the free coreVIEWER app, you can easily record, analyze and process your data.
coreGATE: Simple integration into DAQ systems
The coreGATE Industrial IoT Gateway offers reliable and permanent measurement value output for integration into existing measurement systems or our cloud application coreCLOUD. Our coreGATE IoT Gateway is available in various versions for different areas of application.
